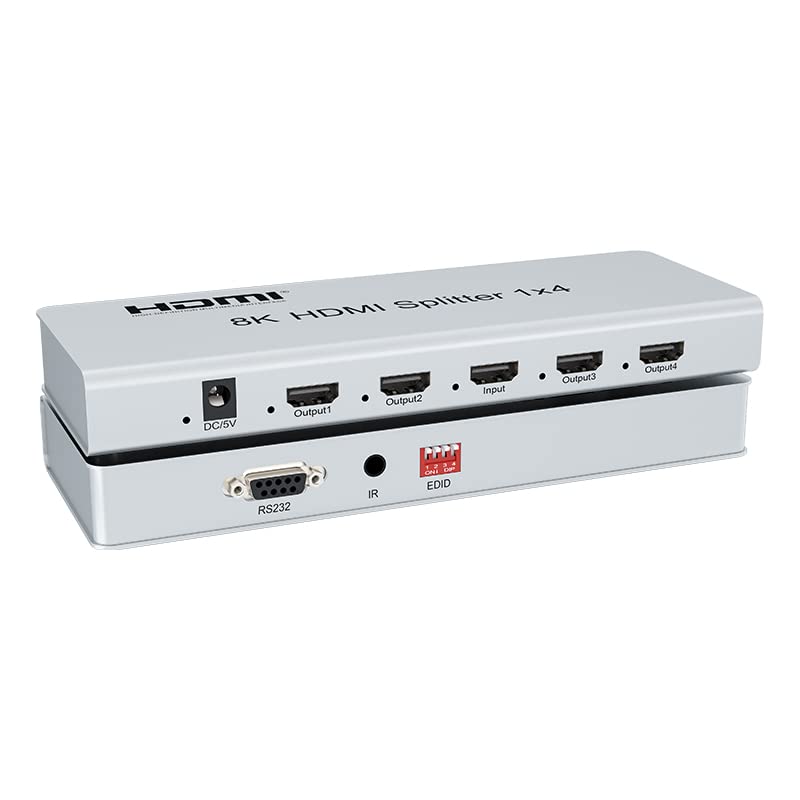

Expert Connect 1×4 HDMI Splitter – 8K@60 / 4K@120 (HDMI 2.1), HDCP 2.3, HDR, 40 Gbps, 1-In 4-Out

Mirror one source to four displays—losslessly. The Expert Connect 1×4 HDMI Splitter delivers ultra-sharp 8K@60Hz and 4K@120Hz via an HDMI 2.1 pipeline (up to 40 Gbps) with HDR and HDCP 2.3—ideal for gaming, signage, classrooms, bars, and home theaters.

Highlights

• 8K60 / 4K120 mirroring from 1 HDMI input to 4 identical outputs.
• HDMI 2.1 • up to 40 Gbps • HDCP 2.3 with HDR10/Dolby Vision and 8/10/12-bit deep color.
• Audio flexibility: S/PDIF (optical) audio breakout to soundbars/AVRs (when used).
• Installer-grade build: metal housing, status LEDs, efficient thermal design.
• Plug-and-play: includes 5V/2A power adapter; no drivers required.

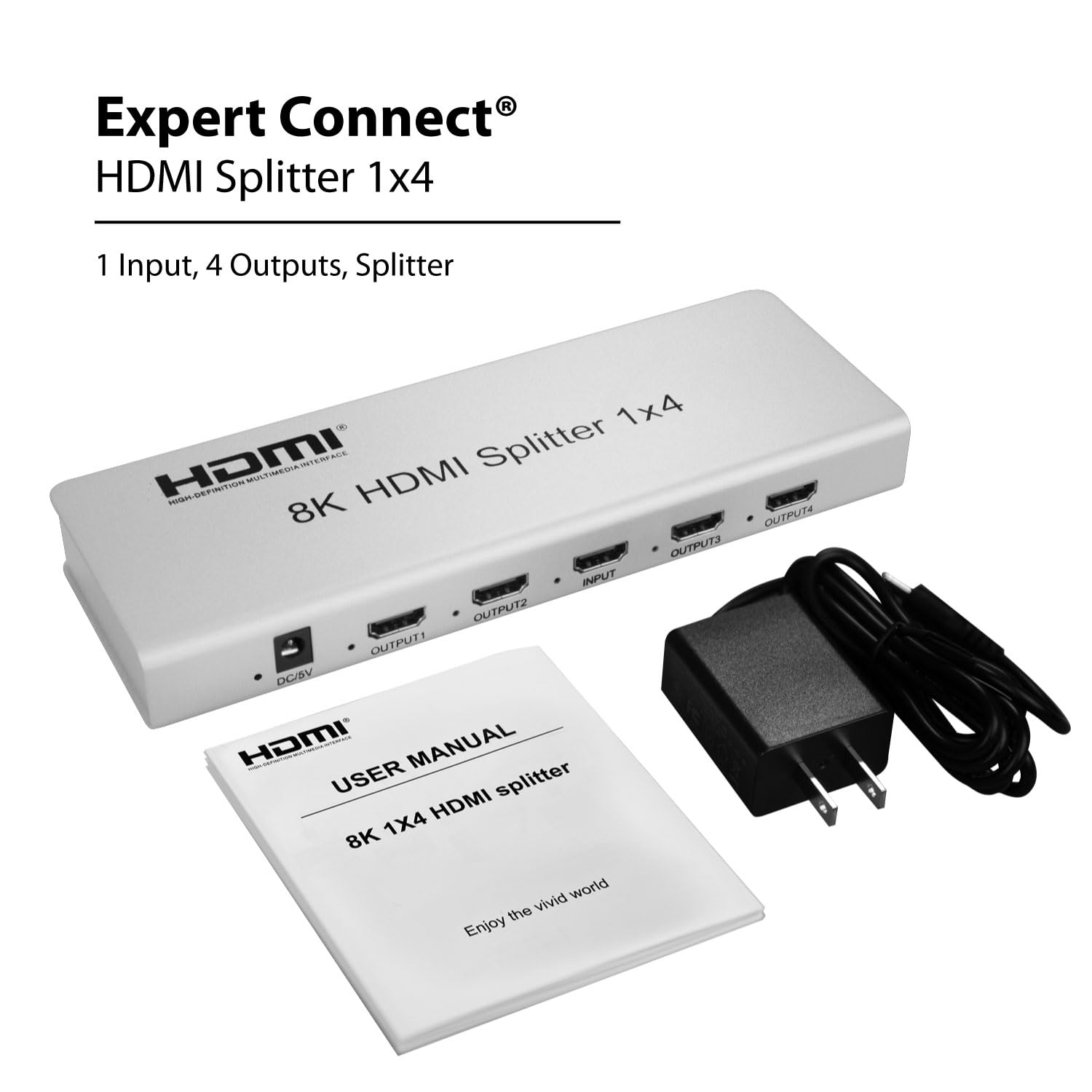

What’s in the Box

• 1× 1-in-4-out HDMI splitter
• 1× 5V/2A power adapter
• User manual

Tech Specs

• Model (MPN): HS8K60-1X4
• Ports: 1× HDMI input (female), 4× HDMI outputs (female)
• Video: up to 8K@60 / 4K@120 / 4K@60 / 1080p; HDR10/Dolby Vision; 8/10/12-bit
• Max Throughput: up to 40 Gbps (HDMI 2.1 class)
• Compliance: HDCP 2.3
• Audio: DTS-HD, Dolby TrueHD, Dolby-AC3, DSD, LPCM 7.1; S/PDIF optical output
• Power: DC 5V/2A (adapter included)
• Dimensions: 211 × 78 × 27 mm (≈ 8.31 × 3.07 × 1.06 in)
• Weight: 504 g (≈ 1.11 lb)
• Operating Temp: −15 ~ 55 °C
• Country of Origin: China
• Warranty: 2-Year Limited

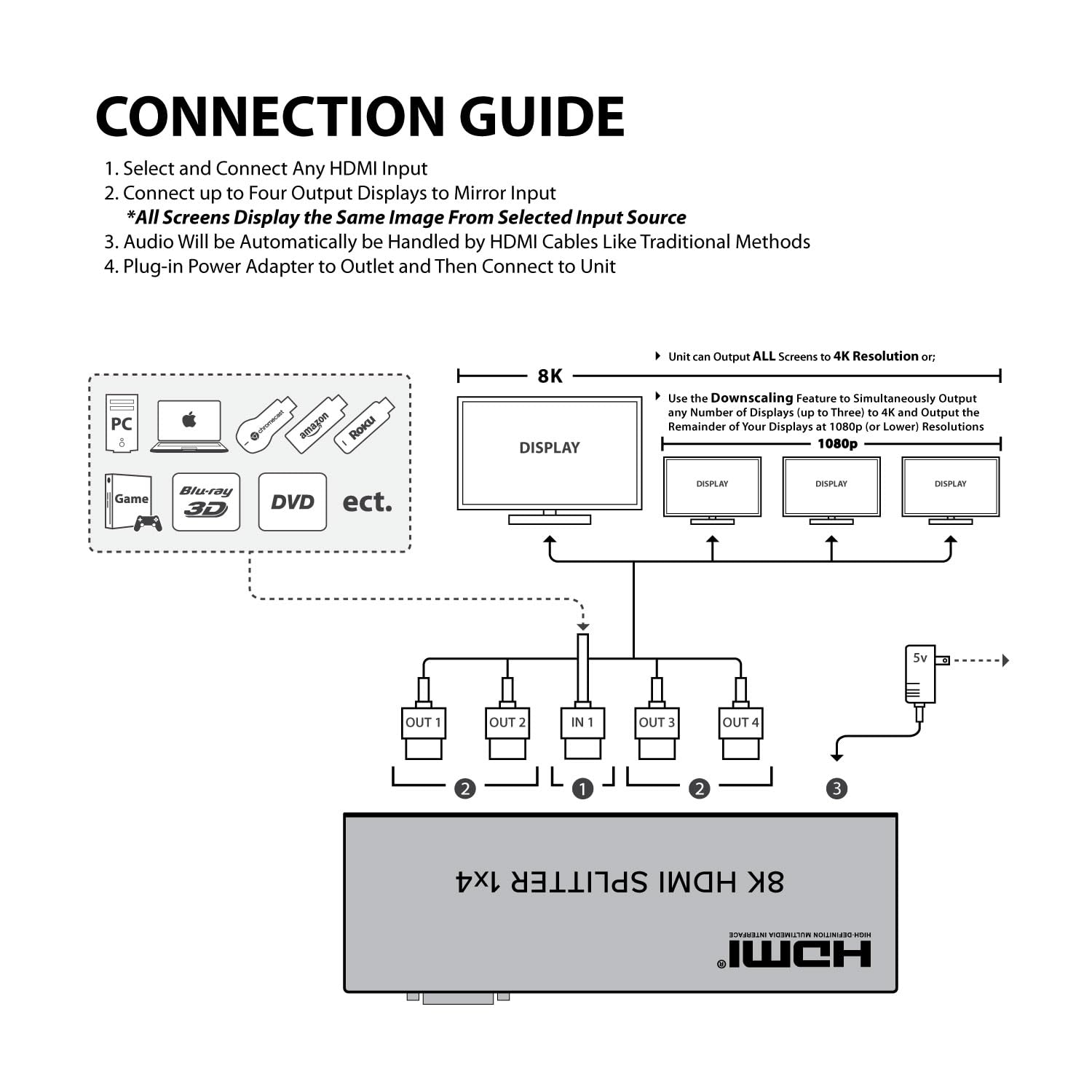

Setup Tips

• Use certified HDMI 2.1 cables; for 8K60 keep each run ≤ 5 m. Longer runs are typical at 4K60 with quality cabling.
• This device splits 1 input to 4 outputs (it does not switch multiple inputs).

Note: No HDMI cables included.
