Expert Connect ET4K60M – 4K@60Hz HDMI 2.0 Extender over Cat6/Cat7 (200 ft), HDR10, HDCP 2.2, IR & Loop-Out

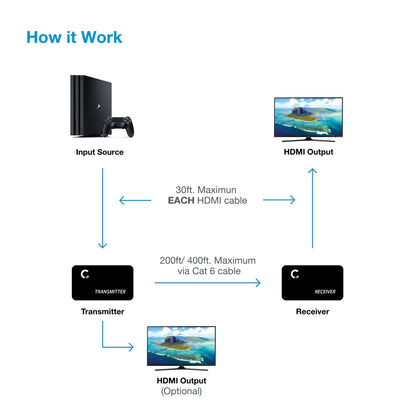

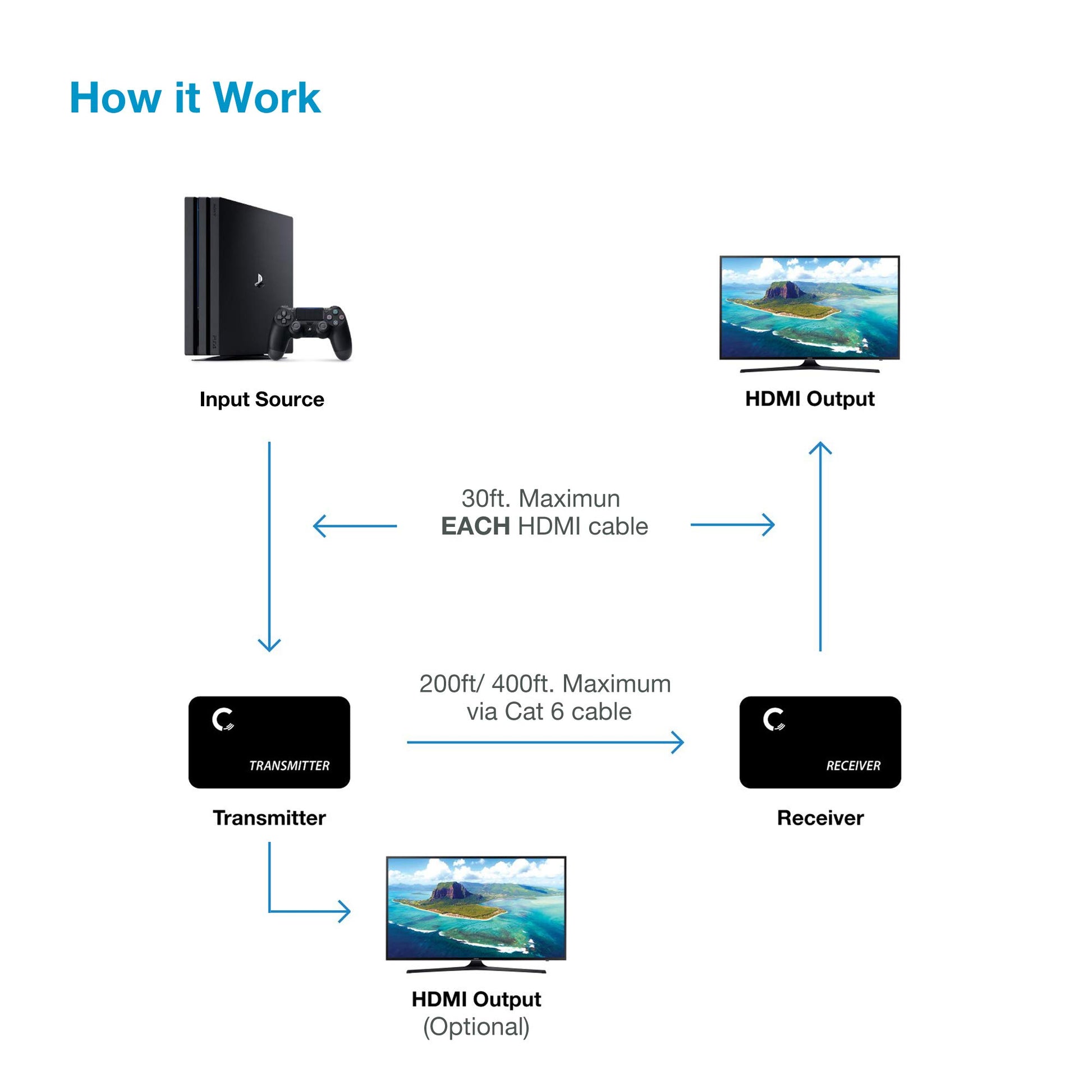

Push 4K farther. The Expert Connect ET4K60M extends uncompressed 4K@60Hz over a single Cat5e/6/7 run up to 200 ft—perfect for conference rooms, classrooms, digital signage, and home theaters where HDMI alone won’t reach.

Highlights

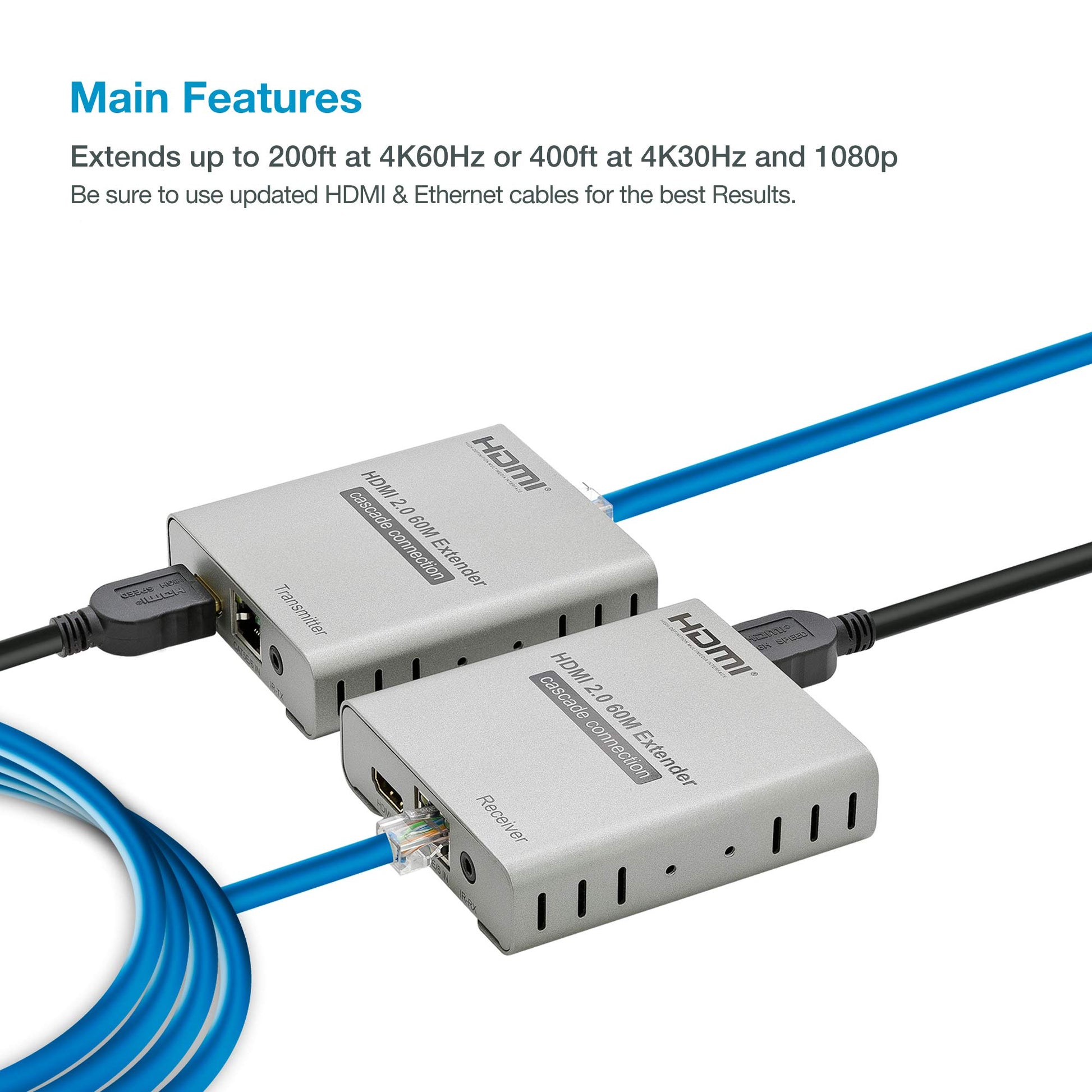

• 4K60 up to 200 ft over one Ethernet cable; supports 4K@30/1080p up to 400 ft for longer runs.
• HDMI 2.0 • 18 Gbps • HDR10 with HDCP 2.2—handles 4:4:4 8-bit and 10-bit HDR via 4:2:2/4:2:0.

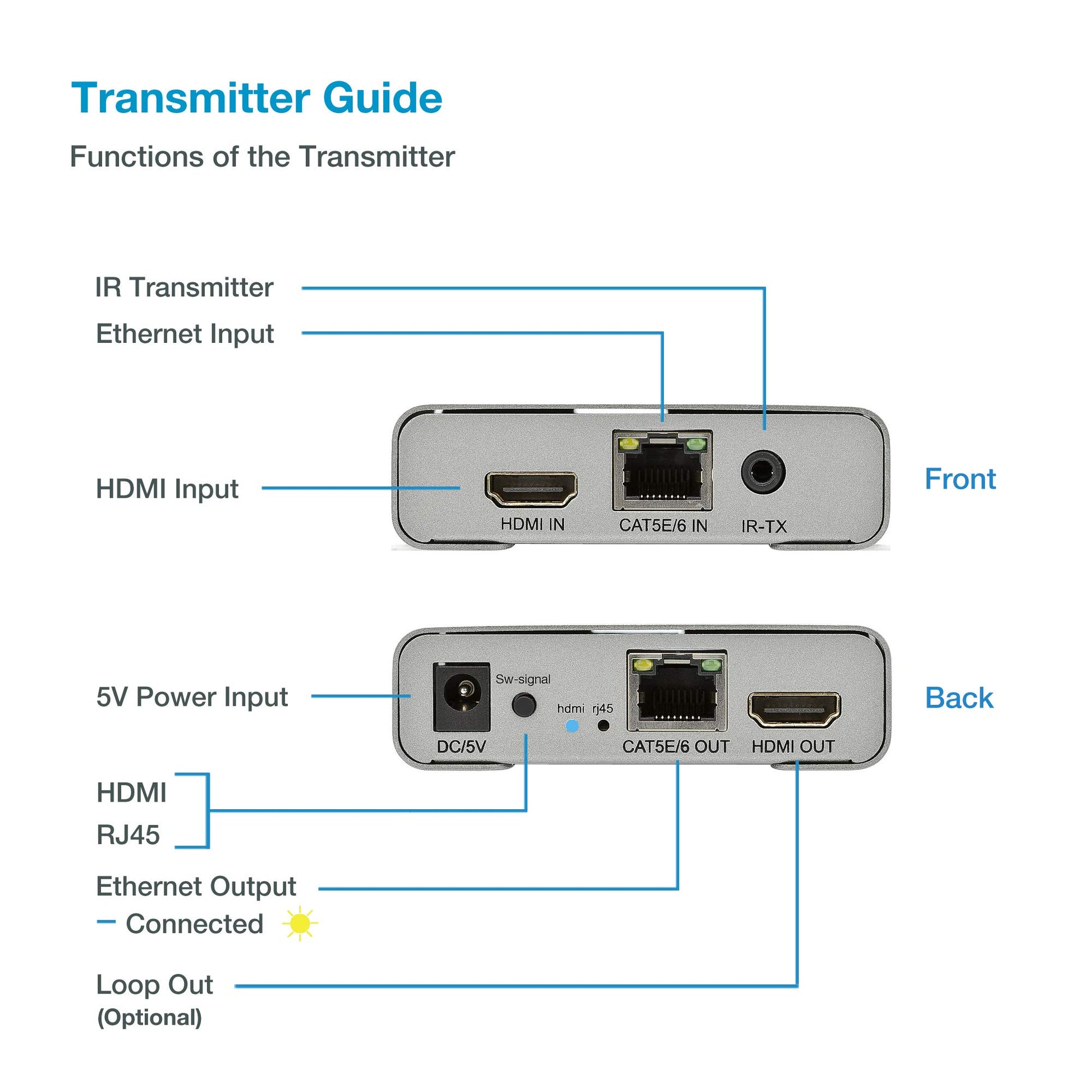

• TX HDMI Loop-Out for local monitoring or cascading to multiple receivers—no extra splitter required.
• IR Pass-Through (20–60 kHz)—control the source from the display end; IR-TX/RX cables included.
• Installer-grade build—metal housing, shielded ports, status LEDs, isolation transformer, and 8 kV surge protection.

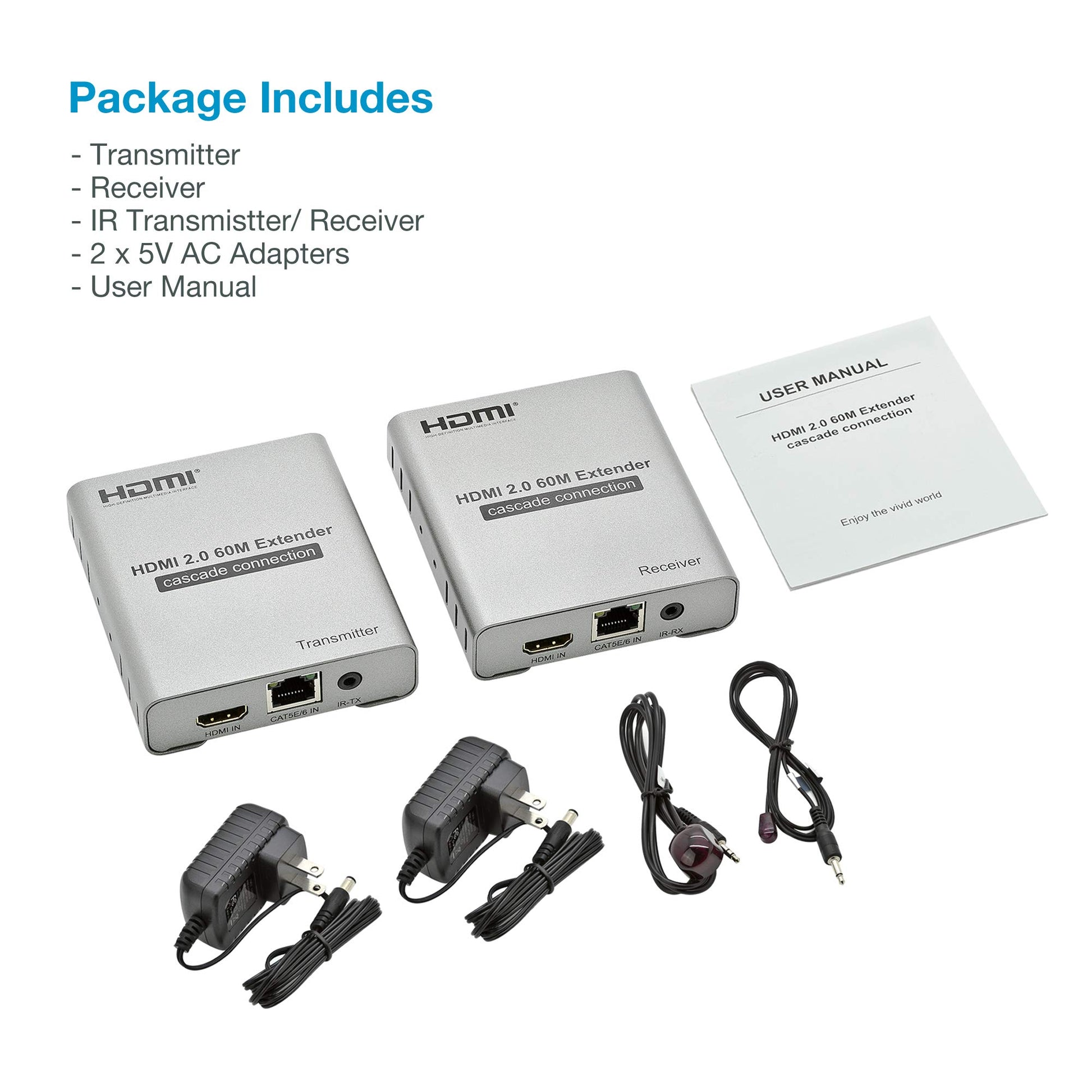

What’s in the Box

• Transmitter (TX) & Receiver (RX)
• IR-TX cable & IR-RX cable
• 2 × 5V/1A power adapters
• User manual

Recommended Cabling

• Use solid-copper Cat6/6a/7 (non-CCA) for best results; shielded cable in noisy environments.
• Avoid unnecessary patch panels/keystone hops; prefer direct runs.

Compatibility

Works with PS5/Xbox Series X, Blu-ray players, Apple TV, Roku, PCs, projectors, and 4K TVs. Supports common 4K/1080p/720p and 3D formats.

Key Specs

• Model: ET4K60M
• Max Distance: 4K@60Hz to 200 ft; 4K@30/1080p to 400 ft
• Video: HDMI 2.0, 18 Gbps, HDR10, HDCP 2.2
• Audio: Dolby Digital/TrueHD, DTS/DTS-HD, LPCM 7.1
• IR: One-way pass-through, 20–60 kHz
• Loop-Out: HDMI on TX
• Power: 2 × 5V/1A adapters (included)
• Connectors: HDMI, RJ45 (Cat5e/6/7)
• Weight: 1.75 lb (kit)
• Country of Origin: China
• Warranty: 1-Year Limited

Note: Not PoE/eARC. For 10-bit HDR, use 4:2:2 or 4:2:0 chroma per HDMI 2.0 bandwidth limits.
