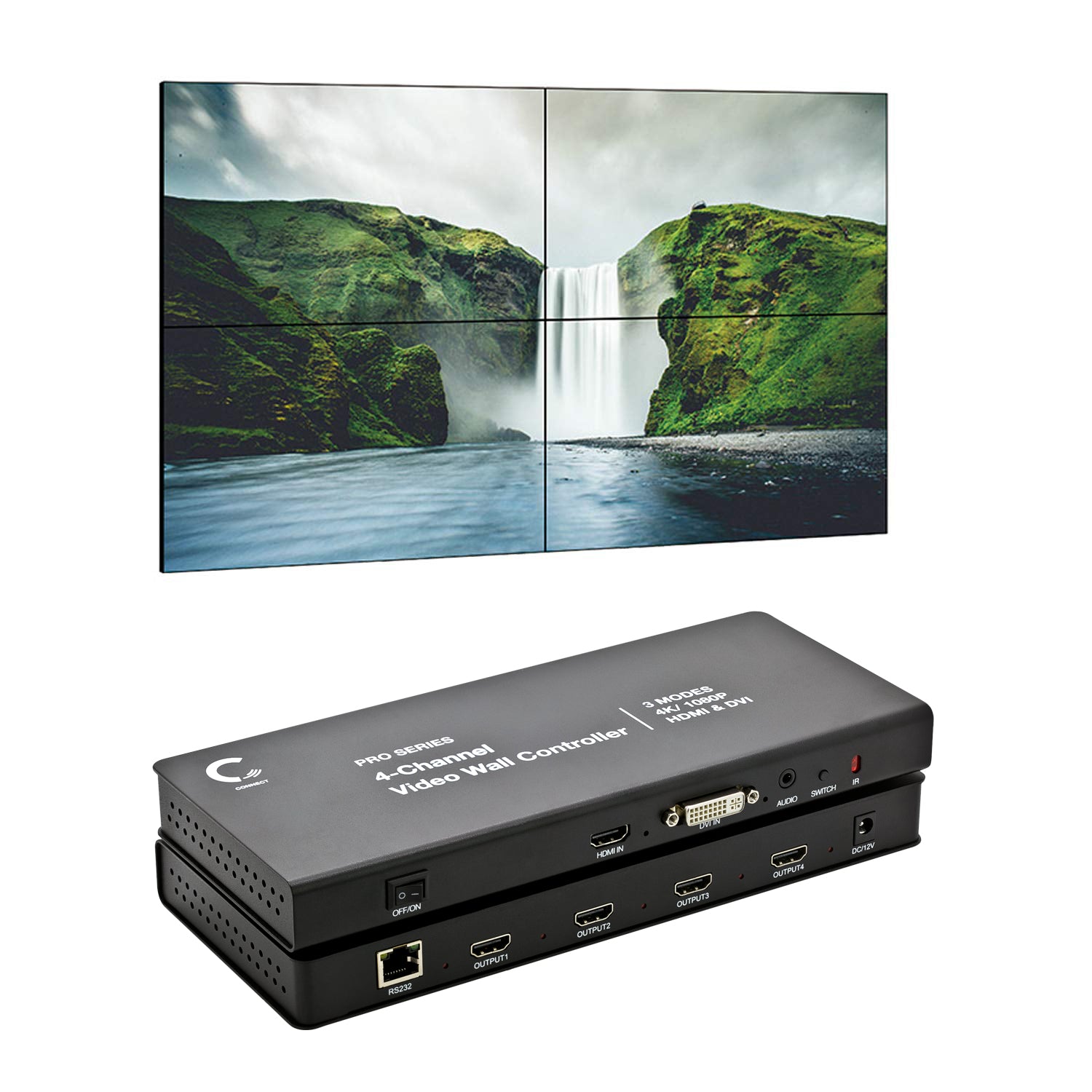

4-Channel | 4K 30Hz

2x2 Video Wall Controller

Distributes one HDMI or DVI device (computer, laptop, DVD player, console etc.) on maximum 4 screens simultaneously.

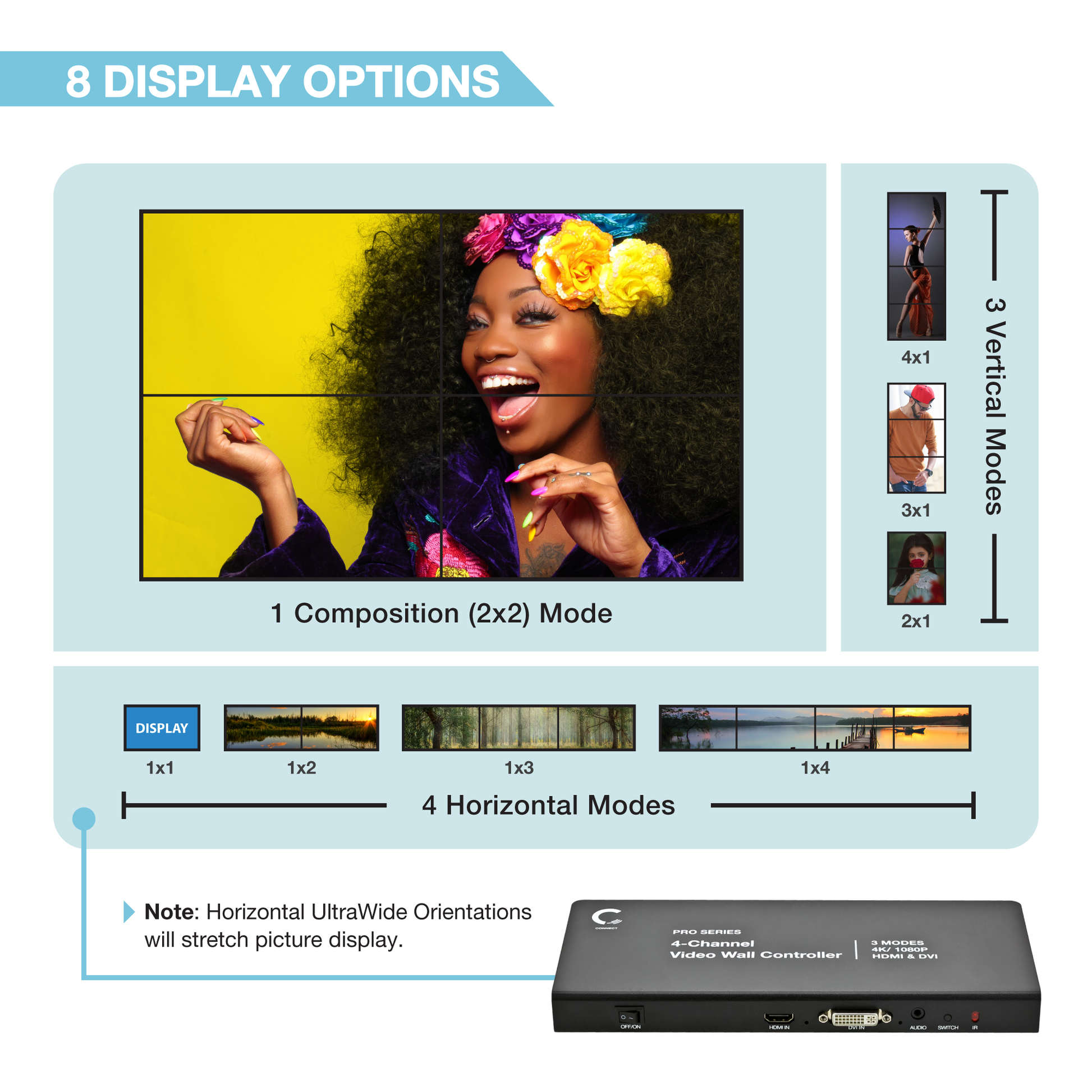

8 Display Modes - 2x2, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1 provide extra diversities on the display options. Transmit HDMI signal for up to 100 feet without losing picture quality.

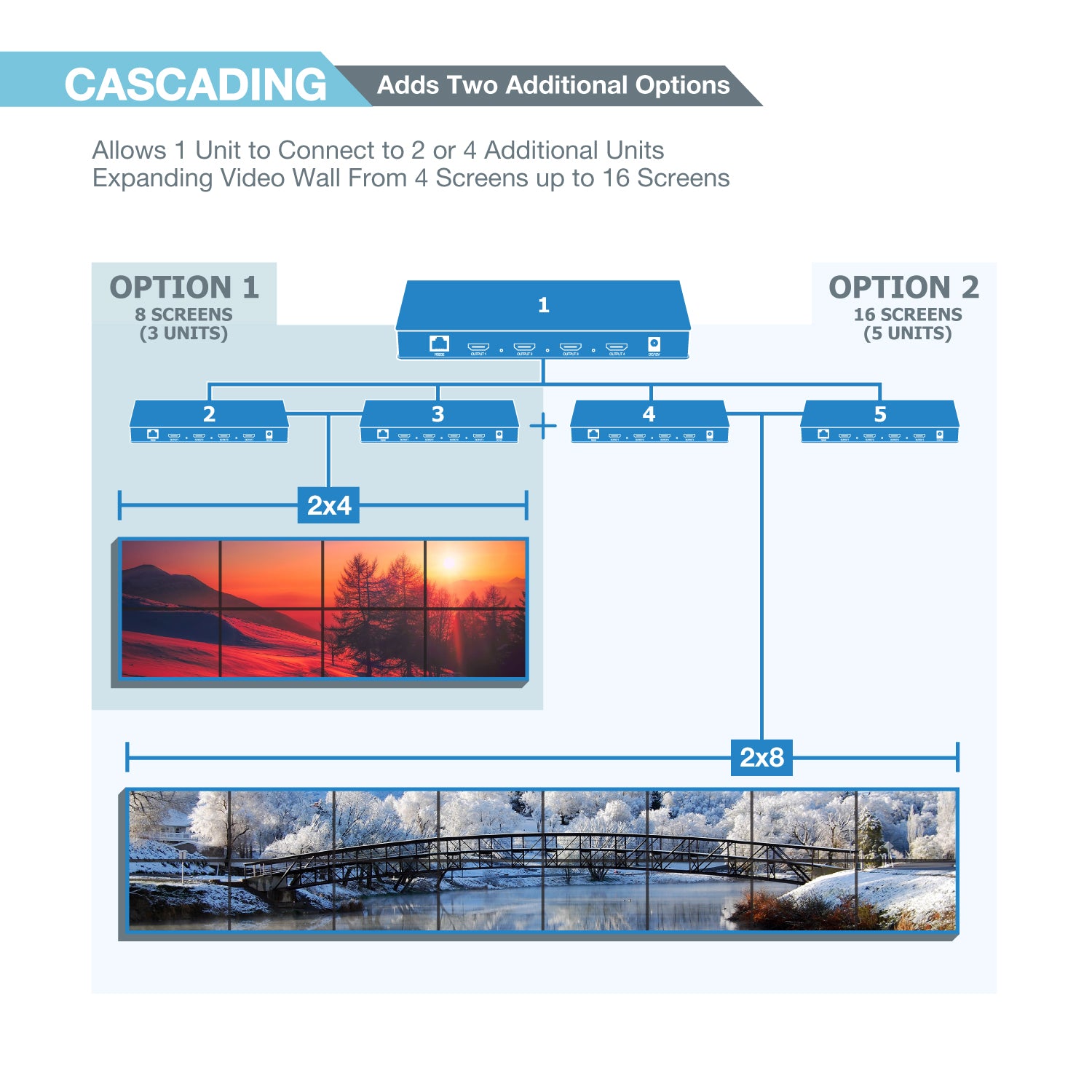

Cascading Mode - 2x4, 2x8 with additional units.

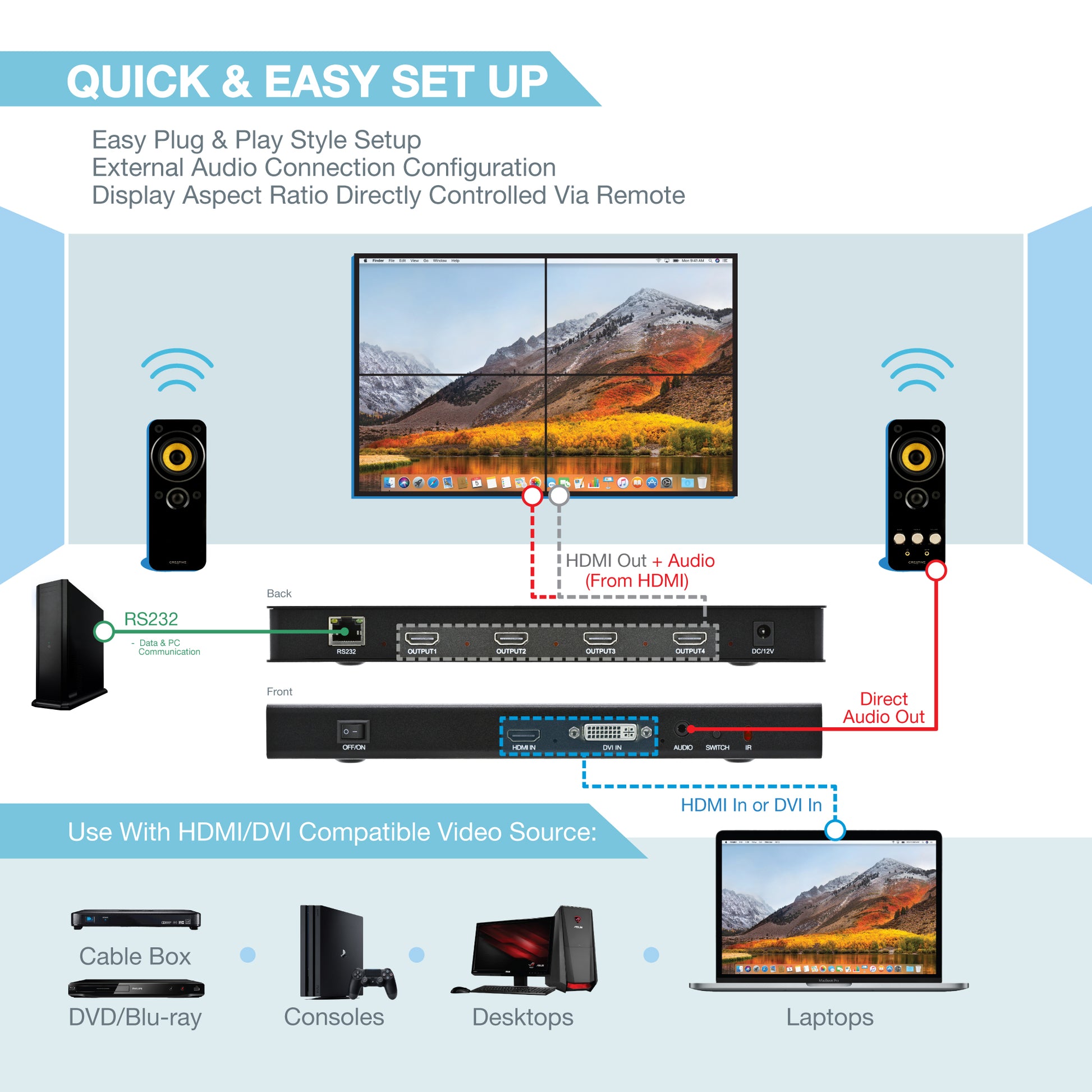

Plug & Play. No driver needed.

Specifications

HDMI version
HDMI 1.4

HDCP version
HDCP 1.4

Support Input Video Resolutions

• 4K@25/30Hz
• 1080p@25/30/50/60Hz
• 1080i @ 50/60Hz (For Direct TV and other broadcast satellites)

Support Output Video Resolution
1080p@60Hz (in each display)

Support Audio Format
PCM 2.0
Does Not Support Dolby Digital and DTS

Power Adapter
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V 2A

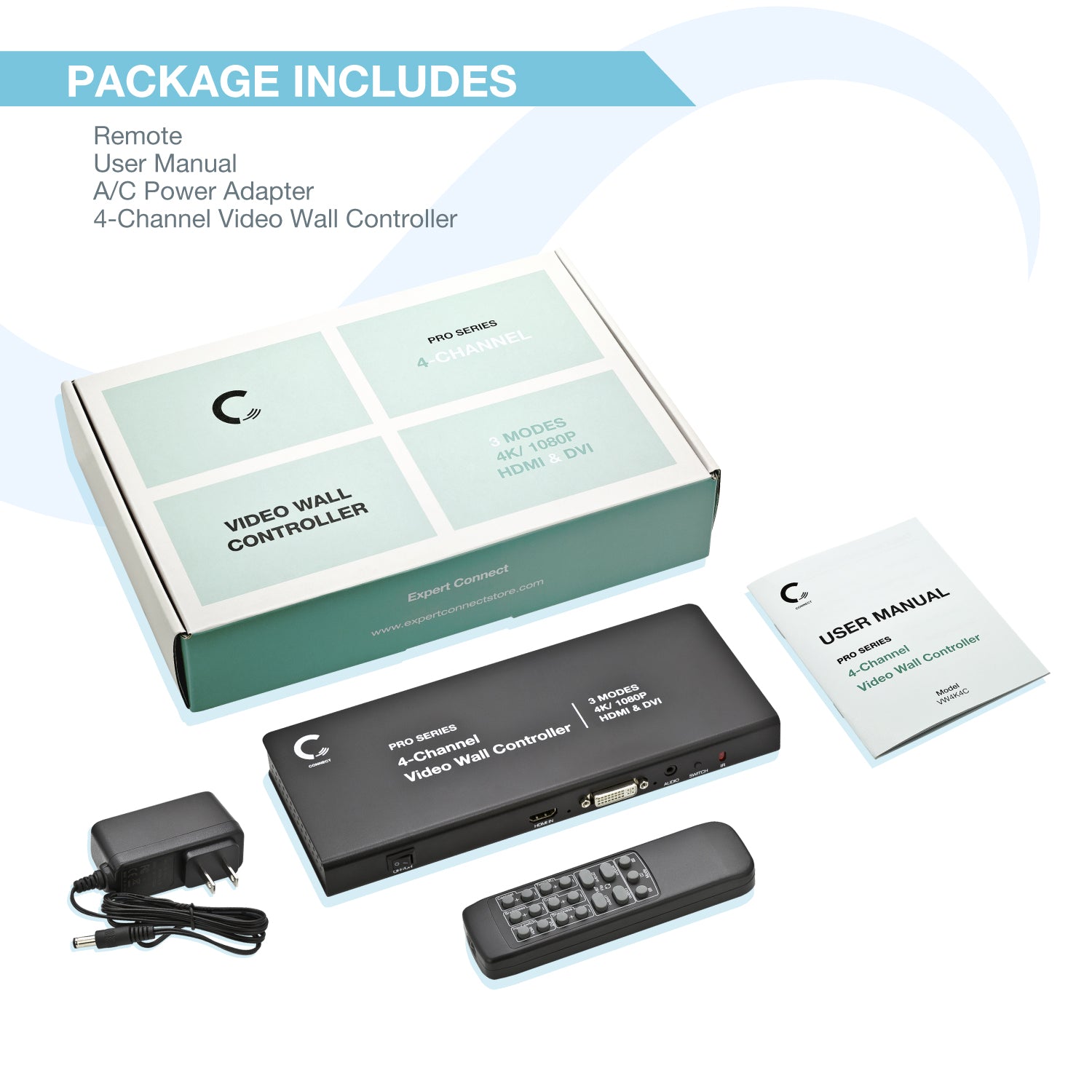

Package

• 4 Channel Video Wall Controller
• Remote Control
• 12V AC Adapter
• User Manual
